Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | NPN |
| EU RoHS | Compliant |
| Material | Si |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 3 |
| Automotive | No |
| PCB changed | 3 |
| Part Status | Obsolete |
| Configuration | Single |
| Package Width | 4.8 |
| Package Height | 2.5 |
| Package Length | 4.8 |

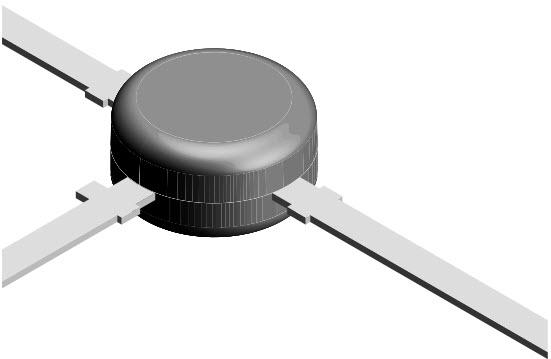

| Supplier Package | TO-50 |
| Standard Package Name | TO-50 |
| Minimum DC Current Gain | 25@14mA@10V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain Range | 2 to 30 |
| Maximum Power Dissipation (mW) | 300 |
| Maximum DC Collector Current (A) | 0.03 |
| Maximum Emitter Base Voltage (V) | 2 |
| Maximum Collector Base Voltage (V) | 20 |
| Maximum Transition Frequency (MHz) | 5000(Typ) |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Collector-Emitter Voltage (V) | 15 |
| Maximum DC Collector Current Range (A) | 0.001 to 0.06 |
| Maximum Collector-Emitter Voltage Range (V) | <20 |
| Description |
