Power Over Ethernet Controllers LM5072MHX-50
Texas Instruments

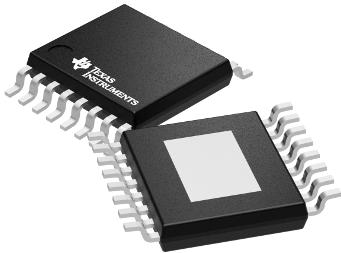

LM5072MHX-50
--
Power Management
Power Over Ethernet Controllers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 4.5(Max) |
| Package Height | 1.05(Max) |
| Package Length | 5.1(Max) |
| Programmability | Yes |
| Supplier Package | HTSSOP EP |
| Standard Supported | IEEE802.3af |
| Standard Package Name | SOP |
| Maximum Duty Cycle (%) | 50(Typ) |
| SVHC Exceeds Threshold | Yes |
| Maximum Output Power (W) | 25 |
| Maximum Input Voltage (V) | 70 |
| Minimum Input Voltage (V) | 9 |
| Maximum Current Limit (mA) | 440(Typ) |
| Typical Inrush Current (mA) | 150 |
| UVLO Turn-Off Threshold (V) | 6.2 |
| Maximum Oscillating Frequency (Hz) | 200000(Typ)|580000(Typ) |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
