Product Attribute | Attribute Value |
HTS | 8542330001 |
PPAP | No |
SVHC | Yes |

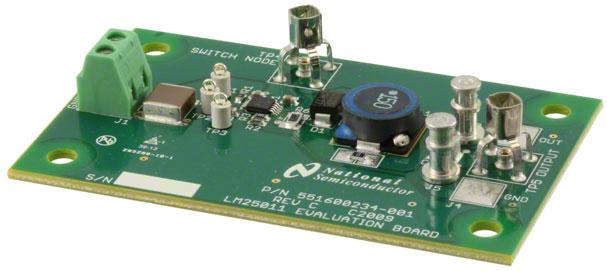

Type | Evaluation Board |
EU RoHS | RoHS Not Applicable |
ECCN (US) | EAR99 |
Automotive | No |
Part Status | Active |
Efficiency (%) | 94.1 |
Supported Device | LM25011 |
Number of Outputs | 1 |
Product Width (mm) | 40.64 |
Input Voltage Range | 8VDC to 42VDC |
Output Current (mA) | 1500 |
Product Length (mm) | 66.04 |
SVHC Exceeds Threshold | Yes |
Switching Frequency (kHz) | 750 |
Output Voltage Range (VDC) | 5.02(Typ) |
Supported Device Technology | DC to DC Converter and Switching Regulator Chip |
