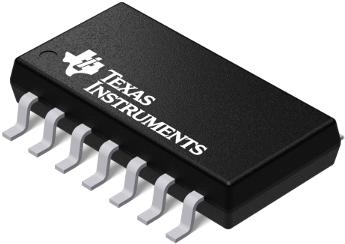

SN74S280NSR
SN74S280NSR
Parity Generators and Checkers SN74S280NSR
Texas Instruments
SN74S280NSR
--
Standard and Specialty Logic
Parity Generators and Checkers
Specification
Product AttributeAttribute Value
PPAPNo
SVHCYes
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count14
AutomotiveNo
Lead ShapeGull-wing
PCB changed14
Part StatusObsolete
Logic FamilyS
Package Width5.6(Max)
Logic FunctionParity Generator/Checker
Number of Bits9
Package Height1.85(Max)
Package Length10.5(Max)
Supplier PackageSOP
Process TechnologyBipolar
Standard Package NameSOP
Supplier Temperature GradeCommercial
Number of Elements per Chip1
Maximum Power Dissipation (mW)335(Typ)
Maximum Quiescent Current (uA)67000(Typ)
Maximum Operating Temperature (°C)70
Minimum Operating Temperature (°C)0
Absolute Propagation Delay Time (ns)21
Maximum Operating Supply Voltage (V)5.25
Minimum Operating Supply Voltage (V)4.75
Typical Operating Supply Voltage (V)5
Maximum Low Level Output Current (mA)20
Maximum High Level Output Current (mA)-1
Maximum Propagation Delay Time @ Maximum CL (ns)21@5V
Description
Parity Generator/Checker 9-Bit 1-Element 14-Pin SOP T/R
