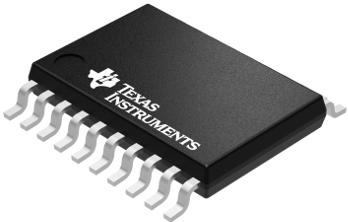

Parity Generators and Checkers 74ACT11286DE4
Texas Instruments
74ACT11286DE4
--
Standard and Specialty Logic
Parity Generators and Checkers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | Obsolete |
| Logic Family | ACT |
| Package Width | 4(Max) |
| Logic Function | Parity Generator/Checker |
| Number of Bits | 9 |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SOIC |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 1250 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 12.9 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 24 |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 10.8@4.5V to 5.5V |
| Description |
