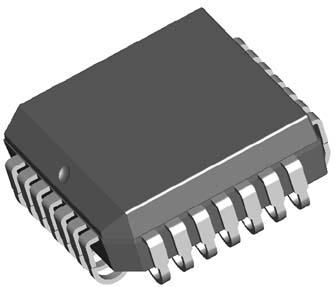

PWM and Resonant Controllers UC2875QP
Texas Instruments
UC2875QP
--
Processors&Controllers
PWM and Resonant Controllers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.31.00.01 |
| PPAP | No |
| Type | Resonant Controllers |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | J-Lead |
| PCB changed | 28 |
| Part Status | Obsolete |
| Package Width | 11.58(Max) |
| Package Height | 4.57(Max) - 0.51(Min) |
| Package Length | 11.58(Max) |
| Supplier Package | PLCC |
| Output Current (mA) | 500(Max) |
| Number of PWM Outputs | 4 |
| Standard Package Name | LCC |
| Maximum Duty Cycle (%) | 100 |
| Switching Frequency (kHz) | 1000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Supply Voltage (V) | 20 |
| Description |
