Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | Unknown |
| Type | Low Power Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | Yes |
| Lead Shape | No Lead |
| PCB changed | 8 |
| Part Status | Active |
| Rail to Rail | Rail to Rail Input/Output |
| Package Width | 3 |
| Package Height | 0.75(Max) |
| Package Length | 3 |

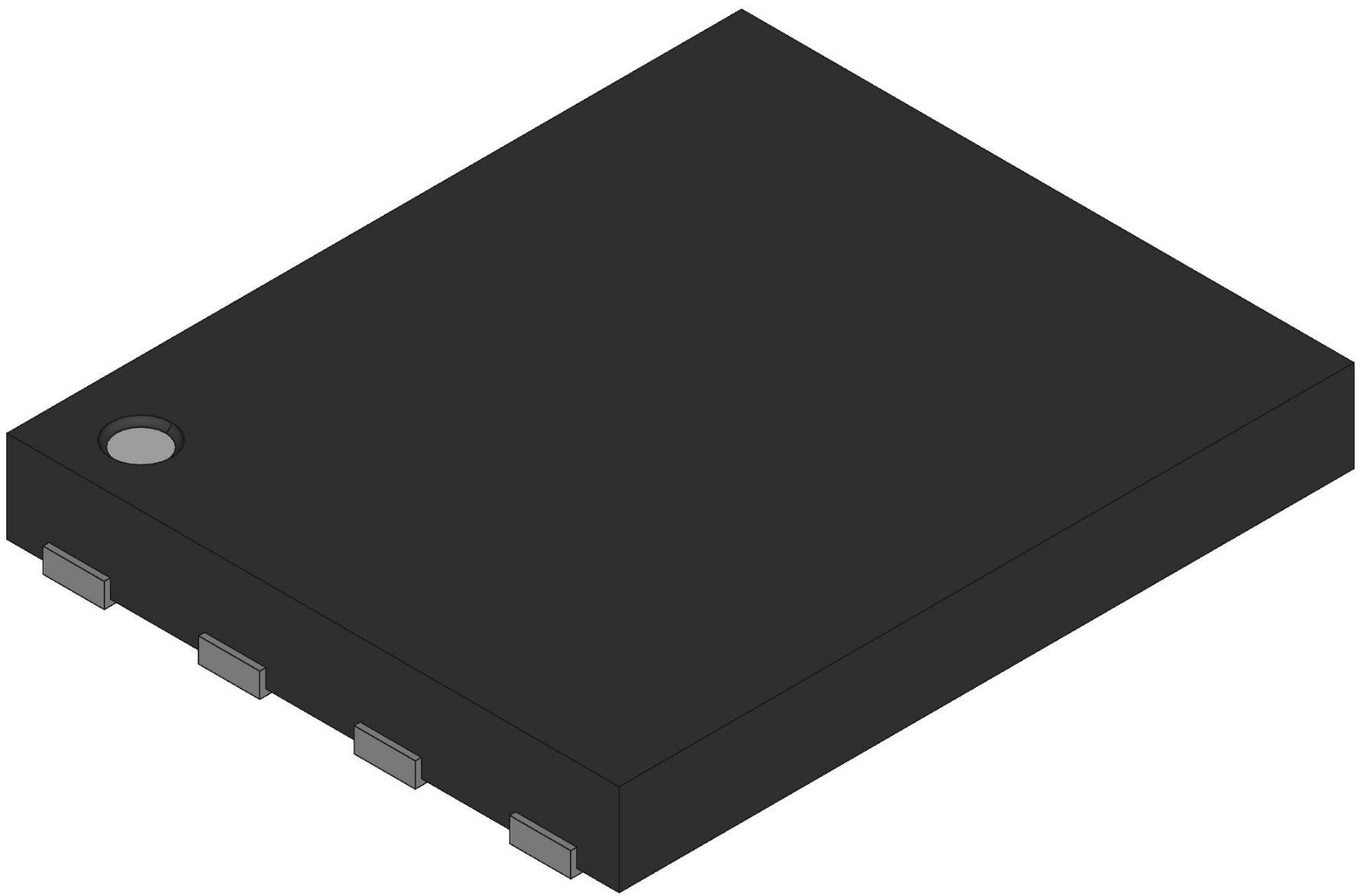

| Supplier Package | DFN EP |
| Manufacturer Type | Low Power Amplifier |
| Minimum CMRR (dB) | 95 |
| Power Supply Type | Single |
| Shut Down Support | No |
| Process Technology | BiCMOS |
| Standard Package Name | DFN |
| Minimum CMRR Range (dB) | 95 to 105 |
| Typical Slew Rate (V/us) | 1@36V |
| Typical Voltage Gain (dB) | 114 |
| Supplier Temperature Grade | Extended |
| Number of Channels per Chip | 2 |
| Typical Output Current (mA) | 65@36V |
| Maximum Quiescent Current (mA) | 0.94@36V |
| Maximum Input Bias Current (uA) | 0.03@36V |
| Typical Input Bias Current (uA) | 0.008@36V |
| Maximum Input Offset Current (uA) | 0.015@36V |
| Maximum Input Offset Voltage (mV) | 1.5@36V |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Single Supply Voltage (V) | 4 |
| Typical Single Supply Voltage (V) | 5|9|12|15|18|24|28 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gain Bandwidth Product (MHz) | 2.5 |
| Typical Input Noise Voltage Density (nV/rtHz) | 20@36V |
| Description |
