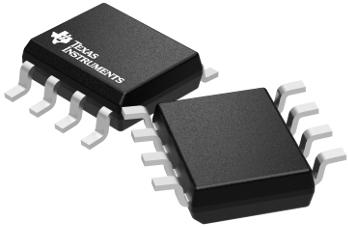

Op Amps TLV2772CDR
Texas Instruments
TLV2772CDR
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | High Output Current Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | CMOS |
| PCB changed | 8 |
| Part Status | Active |
| Rail to Rail | Rail to Rail Output |
| Package Width | 3.98(Max) |
| Package Height | 1.5(Max) |
| Package Length | 5(Max) |
| Supplier Package | SOIC |
| Manufacturer Type | High Output Current Amplifier |
| Minimum CMRR (dB) | 70 |
| Power Supply Type | Single|Dual |
| Shut Down Support | No |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Slew Rate (V/us) | 10.5@5V |
| Typical Voltage Gain (dB) | 113.06 |
| Typical Settling Time (ns) | 600 |
| Number of Channels per Chip | 2 |
| Typical Output Current (mA) | 50(Max) |
| Maximum Power Dissipation (mW) | 725 |
| Maximum Quiescent Current (mA) | 4@5V |
| Maximum Dual Supply Voltage (V) | ±3 |
| Maximum Input Bias Current (uA) | 0.00006@±2.5V |
| Minimum Dual Supply Voltage (V) | ±1.25 |
| Maximum Input Offset Current (uA) | 0.00006@±2.5V |
| Maximum Input Offset Voltage (mV) | 2.5@±2.5V |
| Maximum Single Supply Voltage (V) | 6 |
| Minimum Single Supply Voltage (V) | 2.5 |
| Typical Single Supply Voltage (V) | 3|5 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Typical Gain Bandwidth Product (MHz) | 5.1 |
| Typical Input Noise Voltage Density (nV/rtHz) | 17@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.0006@5V |
