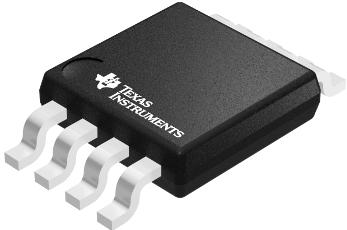

Op Amps TLV2442QDGKRQ1
Texas Instruments
TLV2442QDGKRQ1
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| PPAP | Yes |
| Type | Low Voltage Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | Yes |
| Lead Shape | Gull-wing |
| Output Type | CMOS |
| PCB changed | 8 |
| Part Status | Active |
| Rail to Rail | Rail to Rail Output |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | VSSOP |
| Manufacturer Type | Low Voltage Amplifier |
| Minimum CMRR (dB) | 70 |
| Power Supply Type | Single|Dual |
| Shut Down Support | No |
| Process Technology | LinCMOS |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Slew Rate (V/us) | 1.4@5V |
| Typical Voltage Gain (dB) | 119.55 |
| Supplier Temperature Grade | Automotive |
| Typical Settling Time (ns) | 2600 |
| Number of Channels per Chip | 2 |
| Typical Output Current (mA) | 50(Max) |
| Maximum Power Dissipation (mW) | 725 |
| Maximum Quiescent Current (mA) | 2.2@5V |
| Maximum Dual Supply Voltage (V) | ±5 |
| Maximum Input Bias Current (uA) | 0.00026@±2.5V@-40C to 125C |
| Minimum Dual Supply Voltage (V) | ±1.35 |
| Typical Dual Supply Voltage (V) | ±3 |
| Typical Input Bias Current (uA) | 0.000001@±2.5V |
| Maximum Input Offset Current (uA) | 0.0000005(Typ)@±2.5V |
| Maximum Input Offset Voltage (mV) | 2@±2.5V |
| Maximum Single Supply Voltage (V) | 10 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3|5|9 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gain Bandwidth Product (MHz) | 1.81 |
| Typical Input Noise Voltage Density (nV/rtHz) | 130@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.0006@5V |
| Description |
