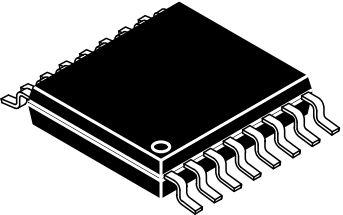

Op Amps TLV2324ID
Texas Instruments
TLV2324ID
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | Low Power Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | CMOS |
| PCB changed | 14 |
| Part Status | Active |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SOIC |
| Manufacturer Type | Low Power Amplifier |
| Minimum CMRR (dB) | 65 |
| Power Supply Type | Single |
| Shut Down Support | No |
| Process Technology | LinCMOS |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 65 to 70 |
| Typical Slew Rate (V/us) | 0.03@5V |
| Typical Voltage Gain (dB) | 114.32 |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 30(Max) |
| Maximum Power Dissipation (mW) | 950 |
| Maximum Quiescent Current (mA) | 0.068@5V |
| Maximum Input Bias Current (uA) | 0.002@5V@85C |
| Typical Input Bias Current (uA) | 0.0000006@5V |
| Maximum Input Offset Current (uA) | 0.0000001(Typ)@5V |
| Maximum Input Offset Voltage (mV) | 10@5V |
| Maximum Single Supply Voltage (V) | 8 |
| Minimum Single Supply Voltage (V) | 2 |
| Typical Single Supply Voltage (V) | 3|5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gain Bandwidth Product (MHz) | 0.085 |
| Typical Input Noise Voltage Density (nV/rtHz) | 68@5V |
| Description |
