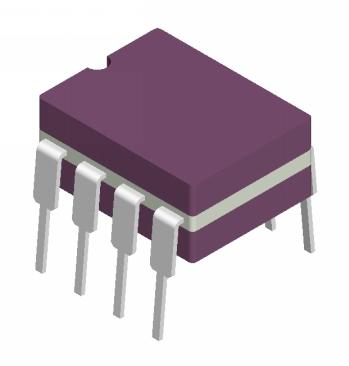

Op Amps TLE2161BMJGB
Texas Instruments
TLE2161BMJGB
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Wideband Amplifier |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 7.11(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | CDIP |
| Manufacturer Type | Wideband Amplifier |
| Minimum CMRR (dB) | 65 |
| Power Supply Type | Dual |
| Shut Down Support | No |
| Process Technology | BiFET |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 65 to 70 |
| Typical Slew Rate (V/us) | 10@±5V |
| Typical Voltage Gain (dB) | 98.06 |
| Supplier Temperature Grade | Military |
| Typical Settling Time (ns) | 10000 |
| Number of Channels per Chip | 1 |
| Typical Output Current (mA) | 80(Max) |
| Maximum Power Dissipation (mW) | 1050 |
| Maximum Quiescent Current (mA) | 0.325@±5V |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.002@±5V@-55C to 125C |
| Minimum Dual Supply Voltage (V) | ±3.5 |
| Typical Dual Supply Voltage (V) | ±5|±9|±12|±15 |
| Typical Input Bias Current (uA) | 0.000003@±5V |
| Maximum Input Offset Current (uA) | 0.000001(Typ)@±5V |
| Maximum Input Offset Voltage (mV) | 1.9@±5V |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Typical Gain Bandwidth Product (MHz) | 5.8 |
| Typical Input Noise Voltage Density (nV/rtHz) | 59@±5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.001@±5V |
| Description |
