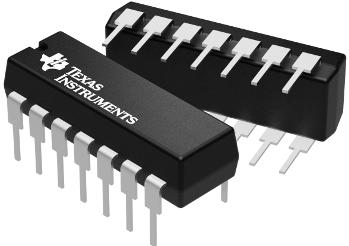

Op Amps TL054ACNE4
Texas Instruments
TL054ACNE4
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | Low Offset Voltage Amplifier |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 14 |
| Part Status | Obsolete |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Manufacturer Type | Low Offset Voltage Amplifier |
| Minimum CMRR (dB) | 65 |
| Power Supply Type | Dual |
| Shut Down Support | No |
| Process Technology | BiFET |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 65 to 70 |
| Typical Slew Rate (V/us) | 15.4@±5V |
| Typical Voltage Gain (dB) | 97.15 |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 80(Max) |
| Maximum Quiescent Current (mA) | 11.2@±5V |
| Maximum Dual Supply Voltage (V) | ±15 |
| Maximum Input Bias Current (uA) | 0.0002@±5V |
| Minimum Dual Supply Voltage (V) | ±5 |
| Typical Dual Supply Voltage (V) | ±9|±12 |
| Maximum Input Offset Current (uA) | 0.0001@±5V |
| Maximum Input Offset Voltage (mV) | 3.5@±5V |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Typical Gain Bandwidth Product (MHz) | 2.7 |
| Typical Input Noise Voltage Density (nV/rtHz) | 75@±5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.01@±5V |
| Description |
