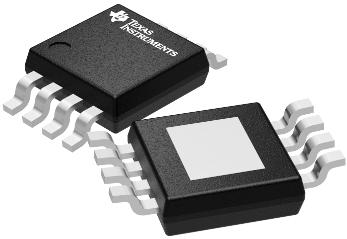

Op Amps THS4051IDGNG4
Texas Instruments
THS4051IDGNG4
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | High Speed Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Obsolete |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | HVSSOP EP |
| Manufacturer Type | High Speed Amplifier |
| Minimum CMRR (dB) | 70 |
| Minimum PSRR (dB) | 70 |
| Power Supply Type | Single|Dual |
| Shut Down Support | No |
| Process Technology | BiCOM |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Slew Rate (V/us) | 200@±5V |
| Typical Voltage Gain (dB) | 75.56 |
| Typical Settling Time (ns) | 140 |
| Maximum Supply Current (mA) | 9.5@±5V |
| Number of Channels per Chip | 1 |
| Typical Output Current (mA) | 75@±5V@-40C to 85C |
| Maximum Power Dissipation (mW) | 2140 |
| Maximum Dual Supply Voltage (V) | ±16.5 |
| Maximum Input Bias Current (uA) | 6@±15V |
| Minimum Dual Supply Voltage (V) | ±4.5 |
| Typical Dual Supply Voltage (V) | ±5|±9|±12|±15 |
| Maximum Input Offset Current (uA) | 0.25@±15V |
| Maximum Input Offset Voltage (mV) | 10@±15V |
| Maximum Single Supply Voltage (V) | 33 |
| Minimum Single Supply Voltage (V) | 9 |
| Typical Single Supply Voltage (V) | 12|15|18|24|28 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Input Noise Voltage Density (nV/rtHz) | 14@±15V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.9@±15V |
| Description |
