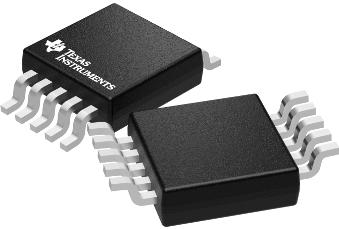

Op Amps OPA2334AIDGSRG4
Texas Instruments
OPA2334AIDGSRG4
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Auto Zero Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 10 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | CMOS |
| PCB changed | 10 |
| Part Status | Obsolete |
| Rail to Rail | Rail to Rail Output |
| Package Width | 3.1(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | VSSOP |
| Manufacturer Type | Zero Drift Amplifier |
| Minimum CMRR (dB) | 110 |
| Minimum PSRR (dB) | 120(Typ) |
| Power Supply Type | Single|Dual |
| Shut Down Support | No |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 105 to 115 |
| Typical Slew Rate (V/us) | 1.6@5V |
| Typical Voltage Gain (dB) | 130 |
| Number of Channels per Chip | 2 |
| Maximum Quiescent Current (mA) | 0.7@5V |
| Maximum Dual Supply Voltage (V) | ±2.75 |
| Maximum Input Bias Current (uA) | 0.0002@5V |
| Minimum Dual Supply Voltage (V) | ±1.35 |
| Typical Input Bias Current (uA) | 0.00007@5V |
| Maximum Input Offset Current (uA) | 0.0004@5V |
| Maximum Input Offset Voltage (mV) | 0.005@5V |
| Maximum Single Supply Voltage (V) | 5.5 |
| Minimum Single Supply Voltage (V) | 2.7 |
| Typical Single Supply Voltage (V) | 3|5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gain Bandwidth Product (MHz) | 2 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.02@5V |
| Description |
