Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | Low Power Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | Obsolete |
| Package Width | 4(Max) |
| Package Height | 1.65(Max) |
| Package Length | 8.75(Max) |

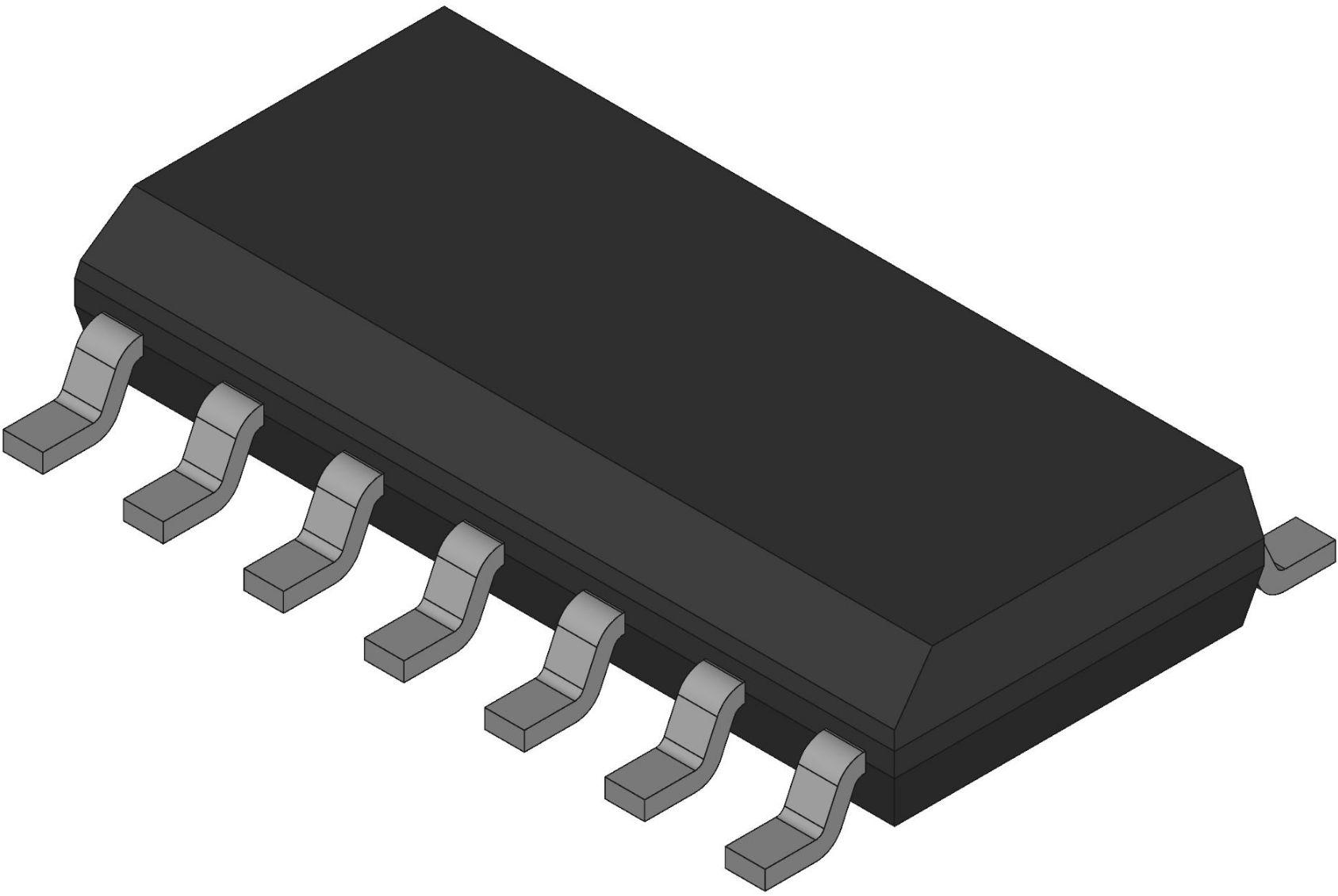

| Supplier Package | SOIC |
| Manufacturer Type | Low Power Amplifier |
| Minimum CMRR (dB) | 70 |
| Power Supply Type | Dual |
| Shut Down Support | No |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Slew Rate (V/us) | 0.5@±15V |
| Typical Voltage Gain (dB) | 104.08 |
| Number of Channels per Chip | 4 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum Quiescent Current (mA) | 3.6@±15V |
| Maximum Dual Supply Voltage (V) | ±22 |
| Maximum Input Bias Current (uA) | 0.1@±15V |
| Maximum Input Offset Current (uA) | 0.025@±15V |
| Maximum Input Offset Voltage (mV) | 5@±15V |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Typical Gain Bandwidth Product (MHz) | 1.3 |
| Typical Input Noise Voltage Density (nV/rtHz) | 40@±15V |
| Description |
