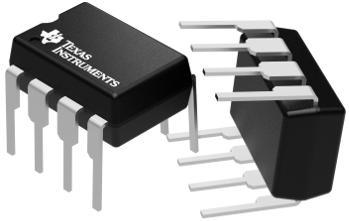

Op Amps LF353P
Texas Instruments
LF353P
--
Amplifier
Op Amps
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | Wideband Amplifier |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Manufacturer Type | Wideband Amplifier |
| Minimum CMRR (dB) | 70 |
| Power Supply Type | Dual |
| Shut Down Support | No |
| Process Technology | BiFET |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 70 to 71 |
| Typical Slew Rate (V/us) | 13@±15V |
| Typical Voltage Gain (dB) | 100 |
| Maximum Supply Current (mA) | 6.5@±15V |
| Number of Channels per Chip | 2 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.0002@±15V |
| Minimum Dual Supply Voltage (V) | ±3.5 |
| Typical Dual Supply Voltage (V) | ±5|±9|±12|±15 |
| Typical Input Bias Current (uA) | 0.00005@±15V |
| Typical Output Resistance (Ohm) | 200 |
| Maximum Input Offset Current (uA) | 0.0001@±15V |
| Maximum Input Offset Voltage (mV) | 10@±15V |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Typical Gain Bandwidth Product (MHz) | 3 |
| Typical Input Noise Voltage Density (nV/rtHz) | 18@±15V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.01@±15V |
| Description |
