Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| Type | General Purpose Amplifier |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 20 |
| Part Status | Active |
| Package Width | 7.6(Max) |
| Package Height | 2.35(Max) |
| Package Length | 13(Max) |

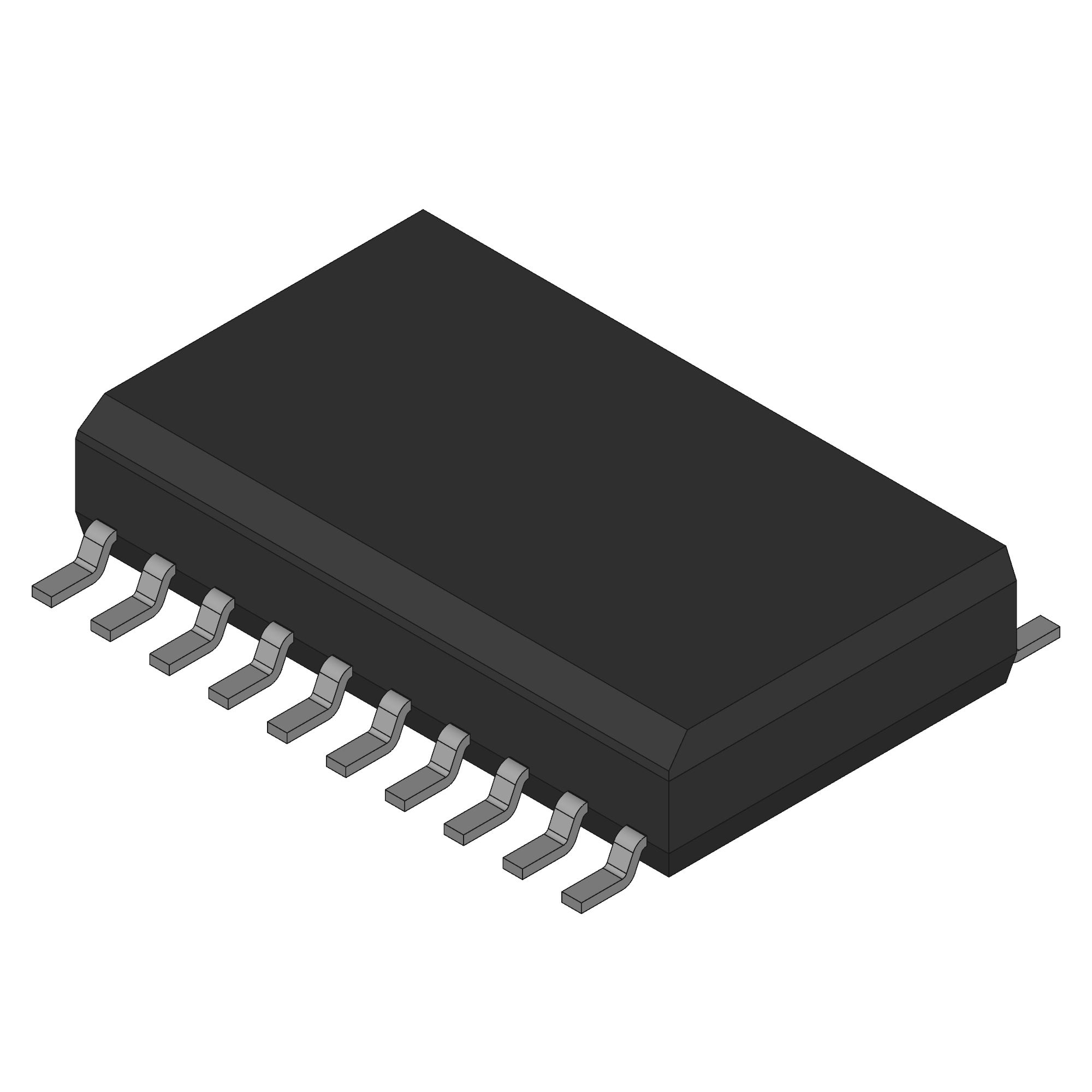

| Supplier Package | SOIC W |
| Manufacturer Type | General Purpose Amplifier |
| Minimum CMRR (dB) | 50 |
| Minimum PSRR (dB) | 65 |
| Power Supply Type | Dual |
| Shut Down Support | No |
| Standard Package Name | SOP |
| Minimum CMRR Range (dB) | 50 to 60 |
| Typical Slew Rate (V/us) | 500@±15V |
| Typical Voltage Gain (dB) | 100 |
| Supplier Temperature Grade | Industrial |
| Typical Settling Time (ns) | 60 |
| Number of Channels per Chip | 1 |
| Typical Output Current (mA) | 60@±15V@-40C to 85C |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 15@±15V@-40C to 85C |
| Minimum Dual Supply Voltage (V) | ±3 |
| Typical Dual Supply Voltage (V) | ±15|±5|±9|±12 |
| Maximum Input Offset Voltage (mV) | 7.5@±15V |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Input Noise Voltage Density (nV/rtHz) | 2.9@±15V |
| Typical Inverting Input Current Noise Density (pA/rtHz) | 13@±15V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 1.5@±15V |
| Description |
