Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| Type | Low Power Amplifier |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 14 |
| Automotive | Unknown |
| Lead Shape | Gull-wing |
| PCB changed | 14 |
| Part Status | Obsolete |
| Rail to Rail | Rail to Rail Output |
| Package Width | 4.4 |
| Package Height | 1 |
| Package Length | 5 |

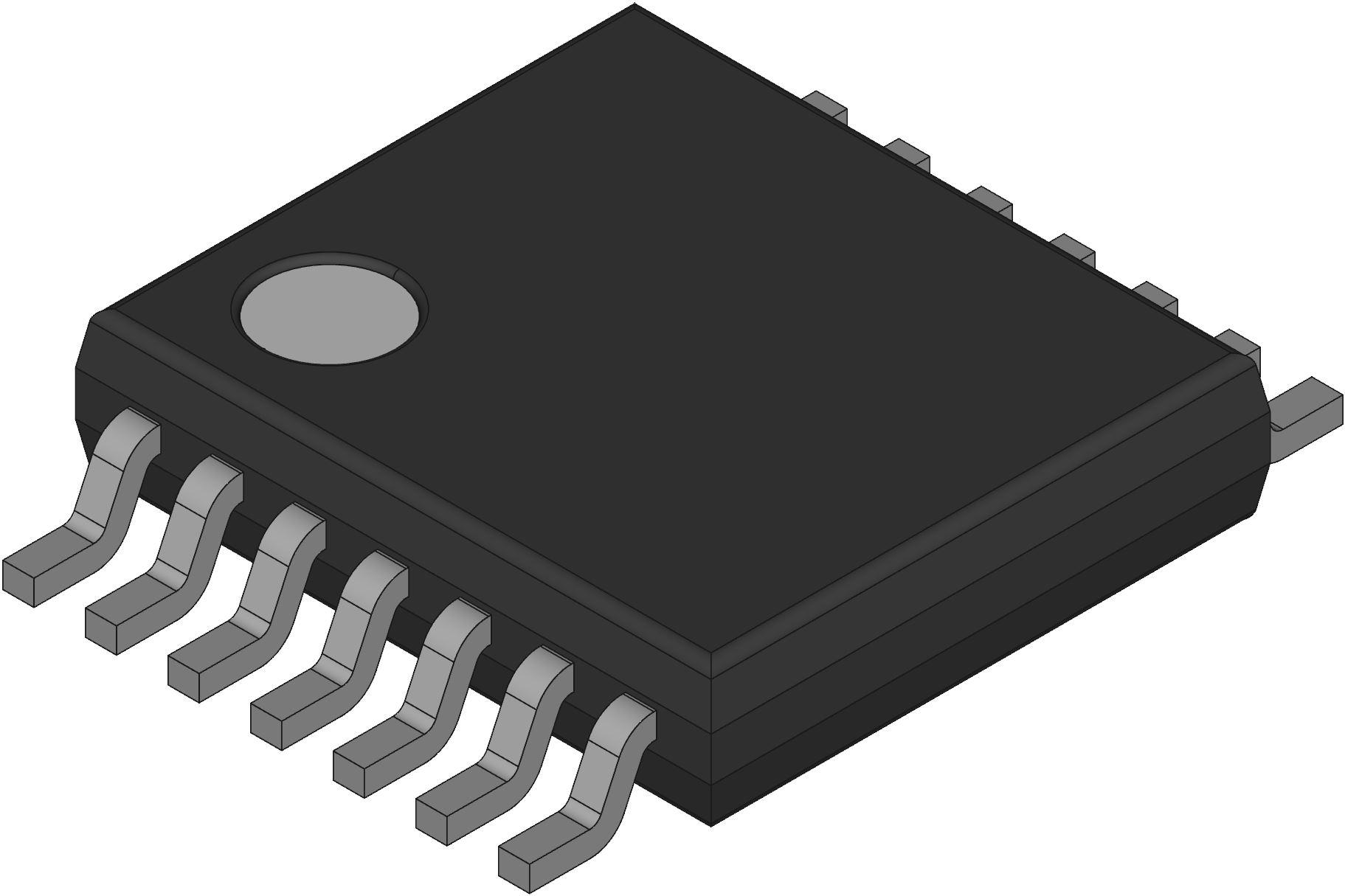

| Supplier Package | TSSOP |
| Manufacturer Type | Low Power Amplifier |
| Minimum CMRR (dB) | 66 |
| Minimum PSRR (dB) | 80 |
| Power Supply Type | Single|Dual |
| Shut Down Support | No |
| Process Technology | BiFET |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Minimum CMRR Range (dB) | 65 to 70 |
| Typical Slew Rate (V/us) | 5@5V |
| Typical Voltage Gain (dB) | 107.23 |
| Supplier Temperature Grade | Industrial |
| Maximum Supply Current (mA) | 3.14@5V |
| Number of Channels per Chip | 4 |
| Typical Output Current (mA) | 10@5V |
| Maximum Dual Supply Voltage (V) | ±13 |
| Maximum Input Bias Current (uA) | 0.000001@5V |
| Minimum Dual Supply Voltage (V) | ±2.5 |
| Typical Dual Supply Voltage (V) | ±3|±5|±9|±12 |
| Maximum Input Offset Current (uA) | 0.0000005@5V |
| Maximum Input Offset Voltage (mV) | 0.5@5V |
| Maximum Single Supply Voltage (V) | 26 |
| Minimum Single Supply Voltage (V) | 5 |
| Typical Single Supply Voltage (V) | 9|12|15|18|24 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Typical Gain Bandwidth Product (MHz) | 5 |
| Typical Input Noise Voltage Density (nV/rtHz) | 17.5@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.0004@5V |
| Description |
