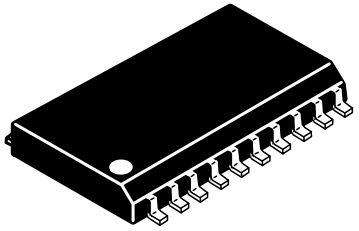

Multiplexers MC100LVEL56DW
onsemi
MC100LVEL56DW
--
Standard and Specialty Logic
Multiplexers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| Polarity | Inverting/Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | ECL |
| Configuration | 2 x 2:1 |
| Package Width | 7.6(Max) |
| Logic Function | Multiplexer |
| Package Height | 2.4(Max) |
| Package Length | 12.95(Max) |
| Supplier Package | SOIC W |
| Input Signal Type | Differential |
| Power Supply Type | Single |
| Output Signal Type | Differential |
| Process Technology | ECL |
| Parity Invert Input | No |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Maximum Frequency (MHz) | 1000(Typ) |
| Number of Inputs per Chip | 4 |
| Number of Outputs per Chip | 2 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 0.75 |
| Maximum Operating Supply Voltage (V) | -3.8|3.8 |
| Minimum Operating Supply Voltage (V) | -3|3 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | -3.3|3.3 |
| Maximum Low Level Output Current (mA) | 50 |
| Maximum High Level Output Current (mA) | -50 |
| Number of Selection Inputs per Element | 3 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 0.62@3.3V |
