Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| EU RoHS | Supplier Unconfirmed |
| Mounting | Surface Mount |
| Polarity | Inverting/Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Bulk |
| Pin Count | 16 |
| Automotive | Unknown |
| Output Type | 3-State |
| PCB changed | 16 |
| Part Status | Obsolete |
| Logic Family | LV |
| Configuration | 1 x 8:1 |
| Package Width | 4(Max) |
| Logic Function | Multiplexer |
| Package Height | 1.45(Max) |
| Package Length | 10(Max) |

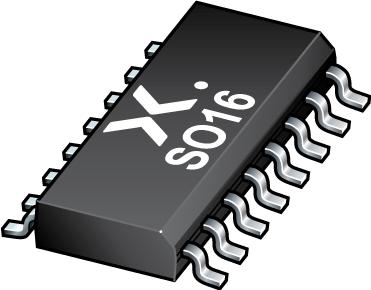

| Supplier Package | SO |
| Input Signal Type | Single-Ended |
| Power Supply Type | Single |
| Output Signal Type | Differential |
| Process Technology | CMOS |
| Parity Invert Input | No |
| Number of Inputs per Chip | 8 |
| Number of Outputs per Chip | 1 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum Quiescent Current (uA) | 160 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 0 |
| Absolute Propagation Delay Time (ns) | 97 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 1 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Low Level Output Current (mA) | 6 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -6 |
| Number of Selection Inputs per Element | 3 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 100(Typ)@1.2V|34(Typ)@2V|19(Typ)@3.3V|25(Typ)@2.7V |
| Description |
