Multiplexers 74HCT157BQ,115
Nexperia
74HCT157BQ,115
--
Standard and Specialty Logic
Multiplexers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | HCT |
| Configuration | 4 x 2:1 |
| Package Width | 2.6(Max) |
| Logic Function | Multiplexer |
| Package Height | 0.95(Max) |
| Package Length | 3.6(Max) |

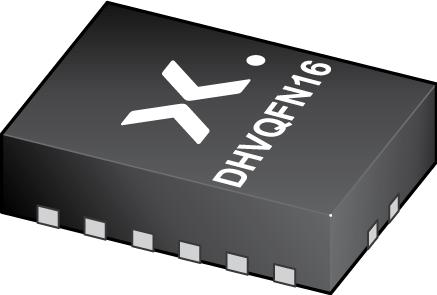

| Supplier Package | DHVQFN EP |
| Input Signal Type | Single-Ended |
| Power Supply Type | Single |
| Output Signal Type | Single-Ended |
| Process Technology | CMOS |
| Parity Invert Input | No |
| Number of Inputs per Chip | 8 |
| Number of Outputs per Chip | 4 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 8 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 56 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 0 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 4 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -4 |
| Number of Selection Inputs per Element | 1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 27@4.5V |
| Description |
