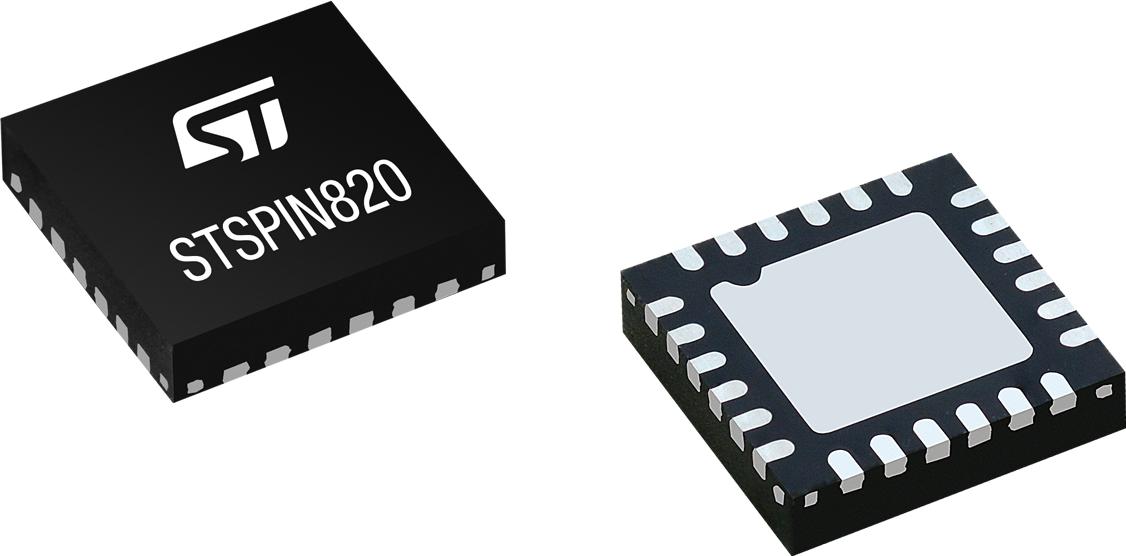

STSPIN820
STSPIN820
Motor Controller and Driver ICs STSPIN820
STMicroelectronics
STSPIN820
--
Driver
Motor Controller and Driver ICs
STSPIN820.pdf
Specification
Product AttributeAttribute Value
HTS8542330001
PPAPNo
TypeMotor Driver
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count24
AutomotiveNo
Motor TypeStepper Motor
PCB changed24
Part StatusActive
Package Width4
Package Height0.98
Package Length4
Supplier PackageTFQFPN EP
Control InterfacePWM
Output ConfigurationFull Bridge
Operating Supply Voltage (V)7 to 45
Maximum Operating Current (mA)3
Maximum Operating Temperature (°C)150
Minimum Operating Temperature (°C)-40
Maximum Operating Supply Voltage (V)45
Minimum Operating Supply Voltage (V)7
Description
Full Bridge Motor Driver 24-Pin TFQFPN EP T/R
