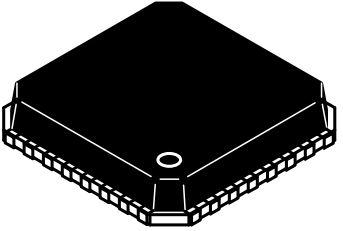

NCV70514MW003R2G
NCV70514MW003R2G
Motor Controller and Driver ICs NCV70514MW003R2G
onsemi
NCV70514MW003R2G
--
Driver
Motor Controller and Driver ICs
Specification
Product AttributeAttribute Value
PPAPYes
TypeMotor Driver
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count32
AutomotiveYes
Lead ShapeNo Lead
Motor TypeStepper Motor
PCB changed32
Part StatusActive
Package Width5
Package Height0.95(Max)
Package Length5
Supplier PackageQFN EP
Control InterfacePWM
Output ConfigurationDual H-Bridge
Standard Package NameQFN
Supplier Temperature GradeAutomotive
Operating Supply Voltage (V)6 to 29
Maximum Peak Output Current (A)0.8
Maximum Operating Temperature (°C)175
Minimum Operating Temperature (°C)-45
Maximum Operating Supply Voltage (V)29
Minimum Operating Supply Voltage (V)6
Description
Dual H-Bridge Motor Driver Automotive 32-Pin QFN EP T/R
