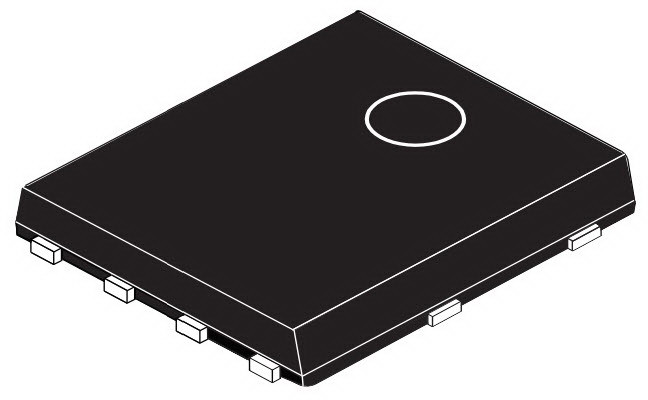

MOSFETs STL7N6LF3
STMicroelectronics
STL7N6LF3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | Unknown |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | Yes |
| Lead Shape | No Lead |
| PCB changed | 8 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Triple Source |
| Package Height | 0.95(Max) |
| Product Category | Power MOSFET |
| Supplier Package | Power Flat EP |
| Maximum IDSS (uA) | 1 |
| Process Technology | STripFET F3 |
| Standard Package Name | Power Flat |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 5.4 |
| Typical Rise Time (ns) | 10.4 |
| Supplier Temperature Grade | Automotive |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 52000 |
| Typical Gate Charge @ 10V (nC) | 8.7 |
| Typical Gate Charge @ Vgs (nC) | 8.7@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 6.7 |
| Maximum Drain Source Voltage (V) | 60 |
| Typical Turn-Off Delay Time (ns) | 32.4 |
| Maximum Gate Threshold Voltage (V) | 2.5 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 20 |
| Typical Input Capacitance @ Vds (pF) | 432@25V |
| Maximum Drain Source Resistance (mOhm) | 43@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
