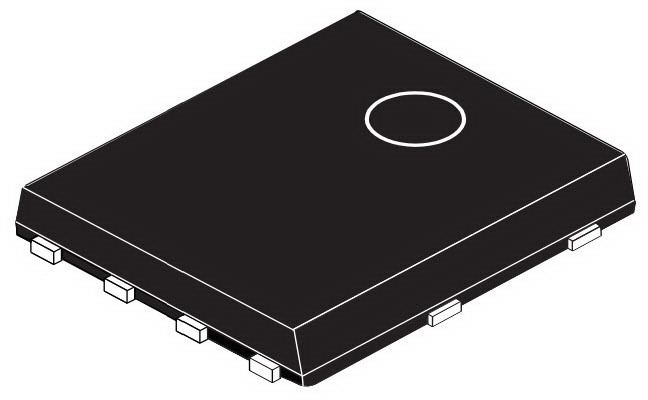

MOSFETs STL10N60M2
STMicroelectronics
STL10N60M2
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 8 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Triple Source |
| Package Height | 0.95(Max) |
| Product Category | Power MOSFET |
| Supplier Package | Power Flat EP |
| Maximum IDSS (uA) | 1 |
| Process Technology | MDmesh |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 13.2 |
| Typical Rise Time (ns) | 8 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 48000 |
| Typical Gate Charge @ 10V (nC) | 13.5 |
| Typical Gate Charge @ Vgs (nC) | 13.5@10V |
| Maximum Gate Source Voltage (V) | ±25 |
| Typical Turn-On Delay Time (ns) | 8.8 |
| Maximum Drain Source Voltage (V) | 600 |
| Typical Turn-Off Delay Time (ns) | 32.5 |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Operating Temperature (°C) | 300 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 5.5 |
| Typical Input Capacitance @ Vds (pF) | 400@100V |
| Maximum Drain Source Resistance (mOhm) | 660@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
