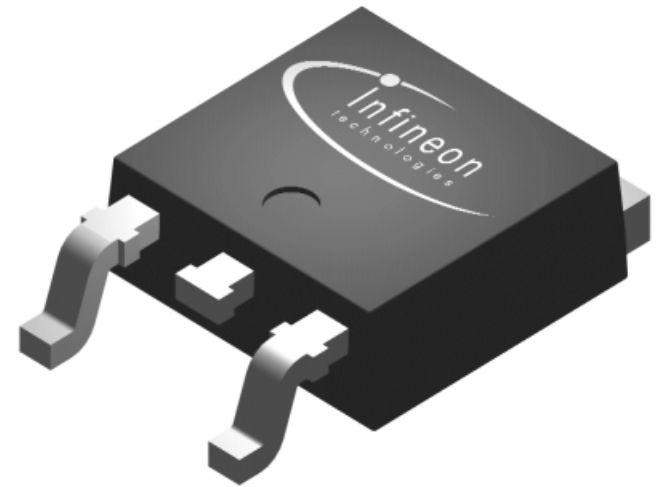

MOSFETs SPD04N50C3BTMA1
Infineon
SPD04N50C3BTMA1
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Automotive | No |
| PCB changed | 2 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single |
| Package Width | 6.22 |
| Package Height | 2.3 |
| Package Length | 6.5 |
| Product Category | Power MOSFET |
| Supplier Package | DPAK |
| Maximum IDSS (uA) | 1 |
| Process Technology | CoolMOS |
| Standard Package Name | TO-252 |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 10 |
| Typical Rise Time (ns) | 5 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 50000 |
| Typical Gate Charge @ 10V (nC) | 22 |
| Typical Gate Charge @ Vgs (nC) | 22@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 10 |
| Maximum Drain Source Voltage (V) | 500 |
| Typical Turn-Off Delay Time (ns) | 70 |
| Maximum Gate Threshold Voltage (V) | 3.9 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 4.5 |
| Typical Input Capacitance @ Vds (pF) | 470@25V |
| Maximum Drain Source Resistance (MOhm) | 950@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
