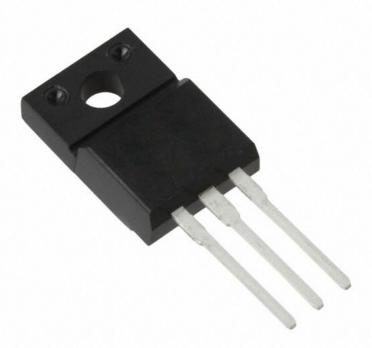

MOSFETs SPA20N65C3XKSA1
Infineon
SPA20N65C3XKSA1
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.29.00.95 |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Part Status | NRND |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single |
| Package Width | 4.7 |
| Package Height | 15.99 |
| Package Length | 10.5 |
| Product Category | Power MOSFET |
| Supplier Package | TO-220FP |
| Process Technology | CoolMOS |
| Standard Package Name | TO-220 |
| Typical Fall Time (ns) | 4.5 |
| Typical Rise Time (ns) | 5 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 34500 |
| Typical Gate Charge @ 10V (nC) | 87 |
| Typical Gate Charge @ Vgs (nC) | 87@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 10 |
| Maximum Drain Source Voltage (V) | 650 |
| Typical Turn-Off Delay Time (ns) | 67 |
| Maximum Gate Threshold Voltage (V) | 3.9 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 20.7 |
| Typical Input Capacitance @ Vds (pF) | 2400@25V |
| Maximum Drain Source Resistance (MOhm) | 190@10V |
| Description |
