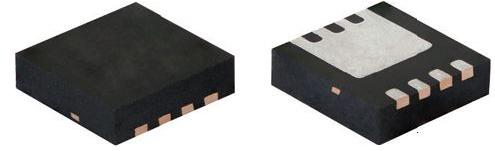

MOSFETs SISH116DN-T1-GE3
Vishay
SISH116DN-T1-GE3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Triple Source |
| Package Width | 3.3 |
| Package Height | 0.78(Max) |
| Package Length | 3.3 |
| Product Category | Power MOSFET |
| Supplier Package | PowerPAK 1212-S |
| Typical Fall Time (ns) | 10 |
| Typical Rise Time (ns) | 10 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 3800 |
| Typical Gate Charge @ Vgs (nC) | 15@4.5V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 10 |
| Maximum Drain Source Voltage (V) | 40 |
| Typical Turn-Off Delay Time (ns) | 36 |
| Maximum Gate Threshold Voltage (V) | 40 |
| Typical Gate Threshold Voltage (V) | 4.5|10 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 10.5 |
| Maximum Drain Source Resistance (mOhm) | 7.8@10V |
| Maximum Continuous Drain Current on PCB @ TC=25°C (A) | 10.5 (Ta) |
| Description |
