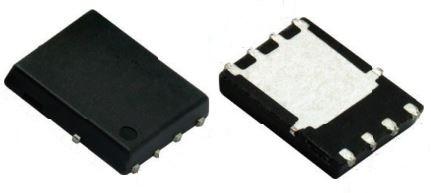

MOSFETs SIR871DP-T1-GE3
Vishay
SIR871DP-T1-GE3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.29.00.95 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | P |
| Configuration | Single Quad Drain Triple Source |
| Package Width | 5.89 |
| Package Height | 1.07(Max) |
| Package Length | 4.9 |
| Product Category | Power MOSFET |
| Supplier Package | PowerPAK SO EP |
| Maximum IDSS (uA) | 1 |
| Process Technology | ThunderFET |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 15|18 |
| Typical Rise Time (ns) | 17|51 |
| Number of Elements per Chip | 1 |
| Maximum Gate Resistance (Ohm) | 5.5 |
| Minimum Gate Resistance (Ohm) | 1 |
| Maximum Power Dissipation (mW) | 5200 |
| Typical Gate Charge @ 10V (nC) | 58 |
| Typical Gate Charge @ Vgs (nC) | 26.5@4.5V|58@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Output Capacitance (pF) | 910 |
| Typical Turn-On Delay Time (ns) | 15|76 |
| Maximum Drain Source Voltage (V) | 100 |
| Typical Gate Plateau Voltage (V) | 4 |
| Typical Turn-Off Delay Time (ns) | 70|38 |
| Maximum Diode Forward Voltage (V) | 1.2 |
| Typical Diode Forward Voltage (V) | 0.81 |
| Typical Gate to Drain Charge (nC) | 10.2 |
| Maximum Gate Threshold Voltage (V) | 2.6 |
| Minimum Gate Threshold Voltage (V) | 1.4 |
| Typical Gate to Source Charge (nC) | 12.9 |
| Typical Reverse Recovery Time (ns) | 62 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 48 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Typical Input Capacitance @ Vds (pF) | 3395@50V |
| Typical Reverse Recovery Charge (nC) | 152 |
| Maximum Drain Source Resistance (MOhm) | 20@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum Positive Gate Source Voltage (V) | 20 |
| Maximum Pulsed Drain Current @ TC=25°C (A) | 300 |
| Maximum Power Dissipation on PCB @ TC=25°C (W) | 5.2 |
| Typical Reverse Transfer Capacitance @ Vds (pF) | 55@50V |
| Maximum Continuous Drain Current on PCB @ TC=25°C (A) | 11.6 |
| Maximum Junction Ambient Thermal Resistance on PCB (°C/W) | 60 |
