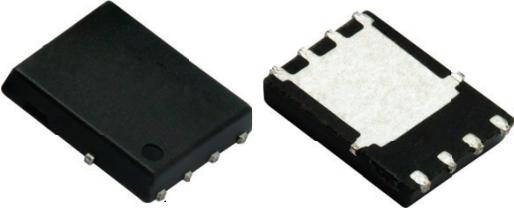

MOSFETs SIR584DP-T1-RE3
Vishay
SIR584DP-T1-RE3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Triple Source |
| Package Width | 5.89 |
| Package Height | 1.07(Max) |
| Package Length | 4.9 |
| Product Category | Power MOSFET |
| Supplier Package | PowerPAK SO EP |
| Process Technology | TrenchFET Gen V |
| Typical Fall Time (ns) | 9|10 |
| Typical Rise Time (ns) | 8|18 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 5000 |
| Typical Gate Charge @ 10V (nC) | 36.7 |
| Typical Gate Charge @ Vgs (nC) | 36.7@10V|27.7@7.5V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 17|20 |
| Maximum Drain Source Voltage (V) | 80 |
| Typical Turn-Off Delay Time (ns) | 28|26 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 24.7 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Typical Input Capacitance @ Vds (pF) | 2800@40V |
| Maximum Drain Source Resistance (mOhm) | 3.9@10V |
| Description |
