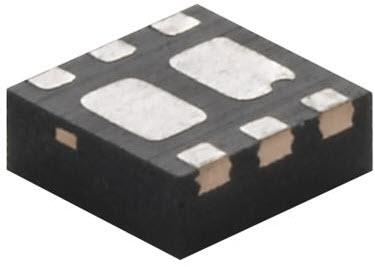

MOSFETs SIA406DJ-T1-GE3
Vishay
SIA406DJ-T1-GE3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.29.00.95 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | No |
| PCB changed | 6 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain |
| Package Width | 2.05 |
| Package Height | 0.75 |
| Package Length | 2.05 |
| Product Category | Power MOSFET |
| Supplier Package | PowerPAK SC-70 |
| Maximum IDSS (uA) | 1 |
| Process Technology | TrenchFET |
| Typical Fall Time (ns) | 14|9 |
| Typical Rise Time (ns) | 9|11 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 3500 |
| Typical Gate Charge @ Vgs (nC) | 15.2@5V|13.7@4.5V |
| Maximum Gate Source Voltage (V) | ±8 |
| Typical Turn-On Delay Time (ns) | 6|10 |
| Maximum Drain Source Voltage (V) | 12 |
| Typical Turn-Off Delay Time (ns) | 40|27 |
| Maximum Gate Threshold Voltage (V) | 1 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 4.5 |
| Typical Input Capacitance @ Vds (pF) | 1380@6V |
| Maximum Drain Source Resistance (MOhm) | 19.8@4.5V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
