Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Unconfirmed |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Dual Source |
| Package Width | 4(Max) |
| Package Height | 1.45(Max) |
| Package Length | 5(Max) |
| Product Category | Power MOSFET |

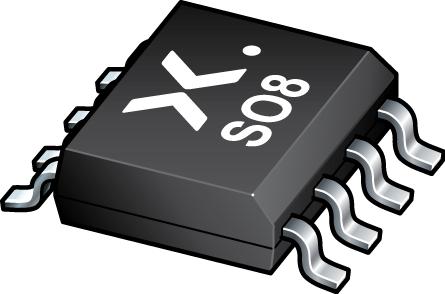

| Supplier Package | SO |
| Typical Fall Time (ns) | 11 |
| Typical Rise Time (ns) | 6 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 2500 |
| Typical Gate Charge @ 10V (nC) | 14.6 |
| Typical Gate Charge @ Vgs (nC) | 14.6@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 5 |
| Maximum Drain Source Voltage (V) | 30 |
| Typical Turn-Off Delay Time (ns) | 21 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 7 |
| Maximum Drain Source Resistance (mOhm) | 30@10V |
| Description |
