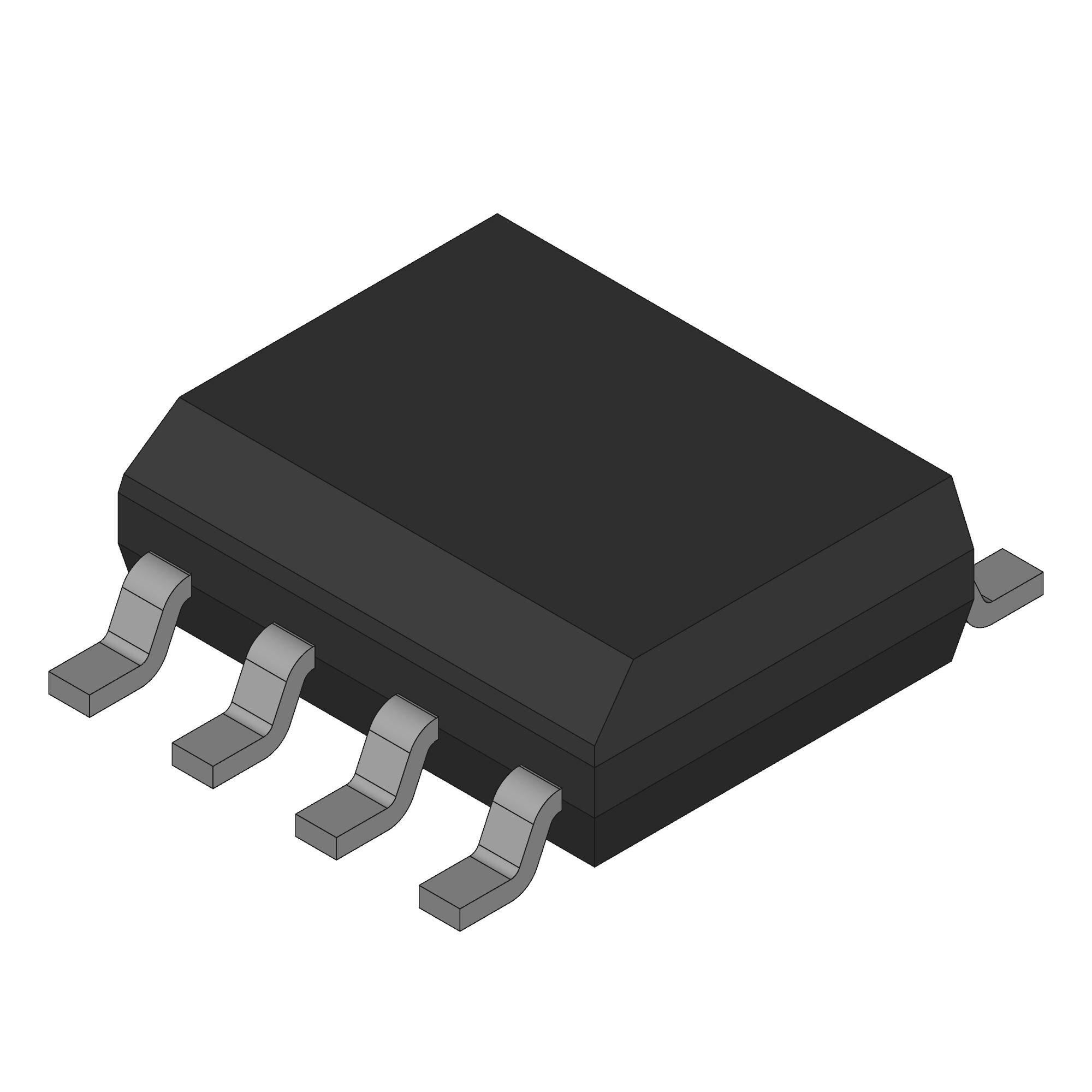

MOSFETs SI4825DDY-T1-GE3
Vishay
SI4825DDY-T1-GE3
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| HTS | 8541.29.00.95 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | P |
| Configuration | Single Quad Drain Triple Source |
| Package Width | 4(Max) |
| Package Height | 1.55(Max) |
| Package Length | 5(Max) |
| Product Category | Power MOSFET |
| Supplier Package | SOIC N |
| Process Technology | TrenchFET |
| Standard Package Name | SOP |
| Typical Fall Time (ns) | 9|19 |
| Typical Rise Time (ns) | 12|92 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 2700 |
| Typical Gate Charge @ 10V (nC) | 57 |
| Typical Gate Charge @ Vgs (nC) | 57@10V|29.5@4.5V |
| Maximum Gate Source Voltage (V) | ±25 |
| Typical Output Capacitance (pF) | 455 |
| Typical Turn-On Delay Time (ns) | 13|48 |
| Maximum Drain Source Voltage (V) | 30 |
| Typical Turn-Off Delay Time (ns) | 40|34 |
| Typical Gate to Drain Charge (nC) | 22 |
| Maximum Gate Threshold Voltage (V) | 2.5 |
| Typical Gate to Source Charge (nC) | 8 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 14.9 |
| Typical Input Capacitance @ Vds (pF) | 2550@15V |
| Typical Reverse Recovery Charge (nC) | 16 |
| Maximum Drain Source Resistance (mOhm) | 12.5@10V |
| Description |
