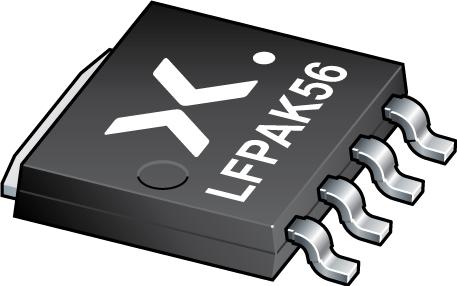

MOSFETs PSMN0R9-30ULDX
Nexperia
PSMN0R9-30ULDX
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Triple Source |
| Product Category | Power MOSFET |
| Maximum IDSS (uA) | 1 |
| Process Technology | NextPowerS3 |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 42.6 |
| Typical Rise Time (ns) | 49.8 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 227000 |
| Typical Gate Charge @ 10V (nC) | 109 |
| Typical Gate Charge @ Vgs (nC) | 109@10V|51@4.5V |
| Maximum Gate Source Voltage (V) | 20 |
| Typical Turn-On Delay Time (ns) | 38.1 |
| Maximum Drain Source Voltage (V) | 30 |
| Typical Turn-Off Delay Time (ns) | 63 |
| Maximum Gate Threshold Voltage (V) | 2.2 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 300 |
| Typical Input Capacitance @ Vds (pF) | 7668@15V |
| Maximum Drain Source Resistance (mOhm) | 0.87@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
