MOSFETs PSMN015-100YLX
Nexperia
PSMN015-100YLX
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 5 |
| Automotive | No |
| PCB changed | 4 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Triple Source |
| Package Width | 4.1(Max) |
| Package Height | 1.1(Max) |
| Package Length | 5(Max) |
| Product Category | Power MOSFET |

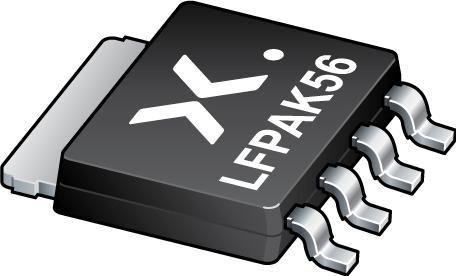

| Supplier Package | LFPAK |
| Maximum IDSS (uA) | 10 |
| Process Technology | TMOS |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 59 |
| Typical Rise Time (ns) | 32 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 195000 |
| Typical Gate Charge @ 10V (nC) | 86.3 |
| Typical Gate Charge @ Vgs (nC) | 86.3@10V|45.8@5V |
| Maximum Gate Source Voltage (V) | 20 |
| Typical Turn-On Delay Time (ns) | 21 |
| Maximum Drain Source Voltage (V) | 100 |
| Typical Turn-Off Delay Time (ns) | 85 |
| Maximum Gate Threshold Voltage (V) | 2.1 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 69 |
| Typical Input Capacitance @ Vds (pF) | 4604@25V |
| Maximum Drain Source Resistance (mOhm) | 14.7@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
