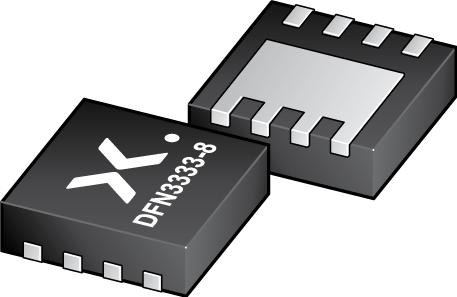

MOSFETs PSMN014-60LS,115
NXP
PSMN014-60LS,115
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Supplier Unconfirmed |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Quad Drain Triple Source |
| Package Width | 3.4(Max) |
| Package Height | 0.95(Max) |
| Package Length | 3.4(Max) |
| Product Category | Power MOSFET |
| Supplier Package | QFN EP |
| Typical Fall Time (ns) | 5 |
| Typical Rise Time (ns) | 5 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 65000 |
| Typical Gate Charge @ 10V (nC) | 19.6 |
| Typical Gate Charge @ Vgs (nC) | 16.8@10V|19.6@10V |
| Maximum Gate Source Voltage (V) | 20 |
| Typical Turn-On Delay Time (ns) | 11 |
| Maximum Drain Source Voltage (V) | 60 |
| Typical Turn-Off Delay Time (ns) | 21 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 40 |
| Typical Input Capacitance @ Vds (pF) | 1264@30V |
| Maximum Drain Source Resistance (mOhm) | 14@10V |
| Description |
