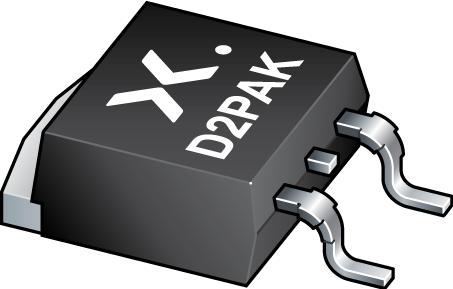

MOSFETs PSMN005-55B,118
NXP
PSMN005-55B,118
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Supplier Unconfirmed |
| Material | Si |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Automotive | No |
| PCB changed | 2 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single |
| Package Width | 9.4(Max) |
| Package Height | 4.5(Max) |
| Package Length | 10.3(Max) |
| Product Category | Power MOSFET |
| Supplier Package | D2PAK |
| Typical Fall Time (ns) | 235 |
| Typical Rise Time (ns) | 180 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 230000 |
| Typical Gate Charge @ Vgs (nC) | 103@5V |
| Maximum Gate Source Voltage (V) | ±15 |
| Typical Turn-On Delay Time (ns) | 45 |
| Maximum Drain Source Voltage (V) | 55 |
| Typical Turn-Off Delay Time (ns) | 420 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 75 |
| Typical Input Capacitance @ Vds (pF) | 6500@25V |
| Maximum Drain Source Resistance (MOhm) | 5.8@10V |
| Description |
