Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | No |
| PCB changed | 6 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | P |
| Configuration | Single Quad Drain |
| Package Width | 2.1(Max) |
| Package Height | 0.61(Max) |
| Package Length | 2.1(Max) |
| Product Category | Power MOSFET |

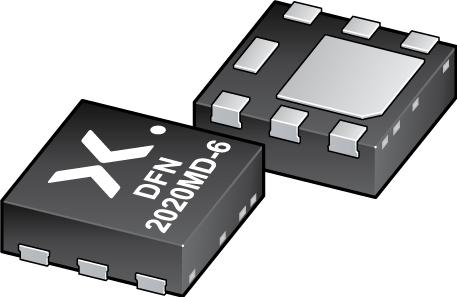

| Supplier Package | DFN-MD EP |
| Maximum IDSS (uA) | 1 |
| Process Technology | TMOS |
| Standard Package Name | DFN |
| Typical Fall Time (ns) | 23 |
| Typical Rise Time (ns) | 42 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 3500 |
| Typical Gate Charge @ Vgs (nC) | 15@4.5V |
| Maximum Gate Source Voltage (V) | 12 |
| Typical Output Capacitance (pF) | 145 |
| Typical Turn-On Delay Time (ns) | 12 |
| Maximum Drain Source Voltage (V) | 20 |
| Typical Gate Plateau Voltage (V) | 1.375 |
| Typical Turn-Off Delay Time (ns) | 62 |
| Maximum Diode Forward Voltage (V) | 1.2 |
| Typical Diode Forward Voltage (V) | 0.6 |
| Typical Gate to Drain Charge (nC) | 4 |
| Maximum Gate Threshold Voltage (V) | 0.9 |
| Minimum Gate Threshold Voltage (V) | 0.47 |
| Typical Gate Threshold Voltage (V) | 0.68 |
| Typical Gate to Source Charge (nC) | 2 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 5.5 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Typical Input Capacitance @ Vds (pF) | 1575@10V |
| Maximum Drain Source Resistance (mOhm) | 37@4.5V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum Positive Gate Source Voltage (V) | 12 |
| Maximum Pulsed Drain Current @ TC=25°C (A) | 22 |
| Maximum Power Dissipation on PCB @ TC=25°C (W) | 3.5 |
| Typical Reverse Transfer Capacitance @ Vds (pF) | 125@10V |
| Maximum Continuous Drain Current on PCB @ TC=25°C (A) | 5.5 |
| Maximum Junction Ambient Thermal Resistance on PCB (°C/W) | 270 |
| Description |
