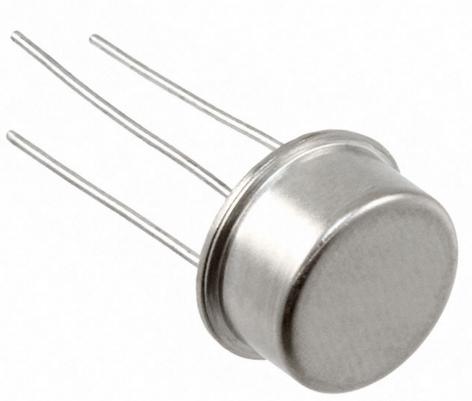

MOSFETs JANTX2N6802
Microchip Technology
JANTX2N6802
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Diameter | 9.39(Max) |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 3 |
| Automotive | No |
| PCB changed | 3 |
| Part Status | Obsolete |
| Channel Type | N |
| Configuration | Single |
| Package Height | 4.57(Max) |
| Product Category | Power MOSFET |
| Supplier Package | TO-205AF |
| Maximum IDSS (uA) | 25 |
| Typical Fall Time (ns) | 30(Max) |
| Typical Rise Time (ns) | 30(Max) |
| Supplier Temperature Grade | Military |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 800 |
| Typical Gate Charge @ 10V (nC) | 33 |
| Typical Gate Charge @ Vgs (nC) | 33@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 30(Max) |
| Maximum Drain Source Voltage (V) | 500 |
| Typical Turn-Off Delay Time (ns) | 55(Max) |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 2.5 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Maximum Drain Source Resistance (mOhm) | 1600@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
