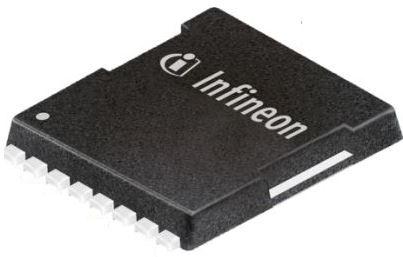

MOSFETs IPT60R022S7XTMA1
Infineon
IPT60R022S7XTMA1
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Pin Count | 9 |
| Automotive | No |
| PCB changed | 8 |
| Part Status | Active |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single Seven Source |
| Package Width | 10.38 |
| Package Height | 2.3 |
| Package Length | 9.8 |
| Product Category | Power MOSFET |
| Supplier Package | HSOF |
| Typical Fall Time (ns) | 9 |
| Typical Rise Time (ns) | 4 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 390000 |
| Typical Gate Charge @ Vgs (nC) | 150@12V |
| Maximum Gate Source Voltage (V) | 20 |
| Typical Turn-On Delay Time (ns) | 30 |
| Maximum Drain Source Voltage (V) | 600 |
| Typical Turn-Off Delay Time (ns) | 150 |
| Maximum Gate Threshold Voltage (V) | 4.5 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 23 |
| Typical Input Capacitance @ Vds (pF) | 5639@300V |
| Maximum Drain Source Resistance (mOhm) | 22@12V |
| Description |
