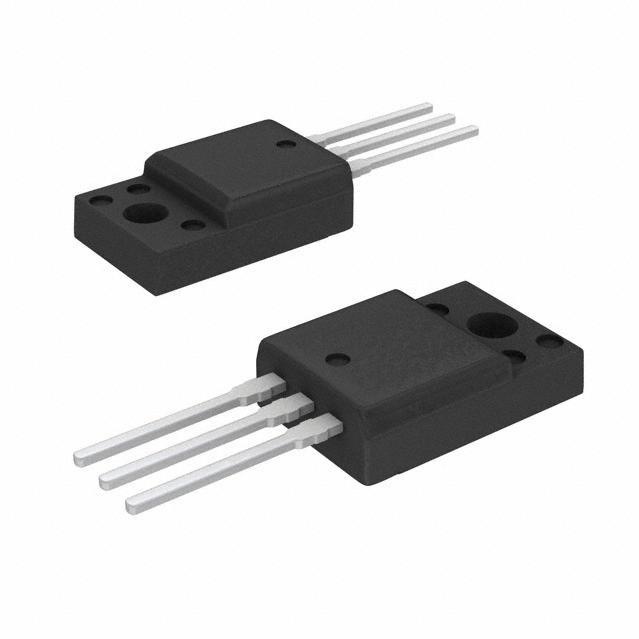

MOSFETs FDPF041N06BL1
onsemi
FDPF041N06BL1
--
Diodes, Transistors and Thyristors
MOSFETs
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Material | Si |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Part Status | Obsolete |
| Channel Mode | Enhancement |
| Channel Type | N |
| Configuration | Single |
| Package Width | 4.6(Max) |
| Package Height | 15.7(Max) |
| Package Length | 10.3(Max) |
| Product Category | Power MOSFET |
| Supplier Package | TO-220F |
| Maximum IDSS (uA) | 1 |
| Process Technology | TMOS |
| Standard Package Name | TO-220 |
| SVHC Exceeds Threshold | Yes |
| Typical Fall Time (ns) | 11 |
| Typical Rise Time (ns) | 22 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 44100 |
| Typical Gate Charge @ 10V (nC) | 53 |
| Typical Gate Charge @ Vgs (nC) | 53@10V |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Turn-On Delay Time (ns) | 29 |
| Maximum Drain Source Voltage (V) | 60 |
| Typical Turn-Off Delay Time (ns) | 38 |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 77 |
| Typical Input Capacitance @ Vds (pF) | 4280@30V |
| Maximum Drain Source Resistance (mOhm) | 4.1@10V |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Description |
