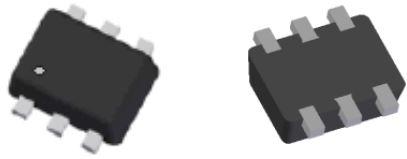

DMC62D0SVQ-13
DMC62D0SVQ-13
MOSFETs DMC62D0SVQ-13
Diodes Incorporated
DMC62D0SVQ-13
--
Diodes, Transistors and Thyristors
MOSFETs
DMC62D0SVQ-13.pdf
Specification
Product AttributeAttribute Value
HTS8541.21.00.95
PPAPYes
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count6
AutomotiveYes
PCB changed6
Part StatusActive
Channel ModeEnhancement
Channel TypeN|P
ConfigurationDual
Package Width1.2
Package Height0.6
Package Length1.6
Product CategoryPower MOSFET
Supplier PackageSOT-563
Typical Fall Time (ns)6.5@N Channel|9.15@P Channel
Typical Rise Time (ns)2.7@N Channel|2.8@P Channel
Supplier Temperature GradeAutomotive
Number of Elements per Chip2
Maximum Power Dissipation (mW)840
Typical Gate Charge @ Vgs (nC)0.4@4.5V@N Channel|0.3@4.5V@P Channel
Maximum Gate Source Voltage (V)±20
Typical Turn-On Delay Time (ns)4.3@N Channel|4.1@P Channel
Maximum Drain Source Voltage (V)60@N Channel|50@P Channel
Typical Turn-Off Delay Time (ns)15.1@N Channel|20.2@P Channel
Maximum Operating Temperature (°C)150
Minimum Operating Temperature (°C)-55
Maximum Continuous Drain Current (A)0.571@N Channel|0.304@P Channel
Typical Input Capacitance @ Vds (pF)30@25V@N Channel26@25V@P Channel
Maximum Drain Source Resistance (mOhm)1700@10V@N Channel|6000@10V@P Channel
Description
Trans MOSFET N/P-CH 60V/50V 0.571A/0.304A Automotive 6-Pin SOT-563 T/R
