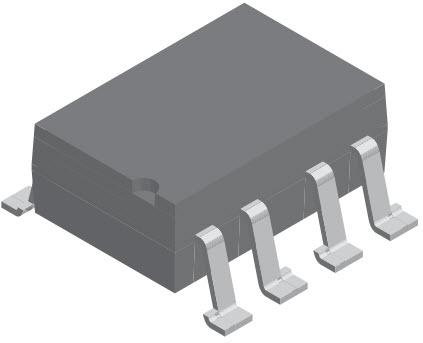

Logic Output Photocouplers SFH6702-X009T
Vishay
SFH6702-X009T
--
Optoelectronics
Logic Output Photocouplers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| Standard | UL |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Input Type | DC |
| Lead Shape | Gull-wing |
| Output Type | Totem-Pole |
| PCB changed | 8 |
| Part Status | Obsolete |
| Package Width | 6.81(Max) |
| Direction Type | Uni-Directional |
| Package Height | 3.81(Max) |
| Package Length | 9.91(Max) |
| Logic Gate Type | AND Schmitt |
| Supplier Package | PDIP SMD |
| Maximum Data Rate | 5MBd |
| Standard Package Name | DIP |
| Typical Fall Time (us) | 0.01 |
| Typical Rise Time (us) | 0.04 |
| Maximum Forward Voltage (V) | 1.75 |
| Maximum Reverse Voltage (V) | 3 |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage (V) | 1.6 |
| Maximum Forward Current (mA) | 10 |
| Maximum Power Dissipation (mW) | 100 |
| Minimum Isolation Voltage (Vrms) | 5300 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 300 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Continuous Output Current (mA) | 25 |
| Description |
