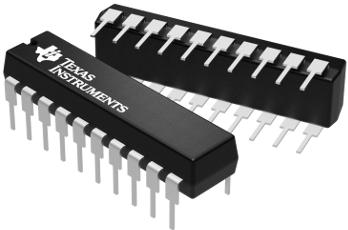

Logic Comparators SN74ALS520NE4
Texas Instruments
SN74ALS520NE4
--
Standard and Specialty Logic
Logic Comparators
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | Identity Comparator |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| Polarity | Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Totem-Pole |
| PCB changed | 20 |
| Part Status | Unconfirmed |
| Logic Family | ALS |
| Package Width | 6.6(Max) |
| Number of Bits | 8 |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 26.92(Max) |
| Output Function | A=B |
| Supplier Package | PDIP |
| Process Technology | Bipolar |
| Standard Package Name | DIP |
| Supplier Temperature Grade | Commercial |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 22 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 24 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -2.6 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 20@4.5V to 5.5V |
| Description |
