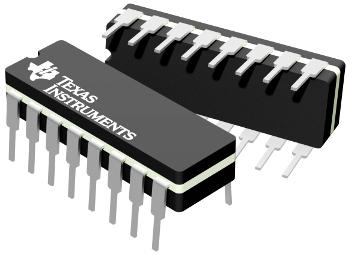

Logic Adders and Subtractors 5962-9758701QEA
Texas Instruments
5962-9758701QEA
--
Standard and Specialty Logic
Logic Adders and Subtractors
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 16 |
| Part Status | Active |
| Logic Family | F |
| Package Width | 7.62(Max) |
| Logic Function | Binary Full Adder |
| Number of Bits | 4 |
| Package Height | 3.56(Max) |
| Package Length | 21.34(Max) |
| Supplier Package | CDIP |
| Process Technology | Bipolar |
| Standard Package Name | DIP |
| Supplier Temperature Grade | Military |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 14 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 20 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 9.5@5V |
| Description |
