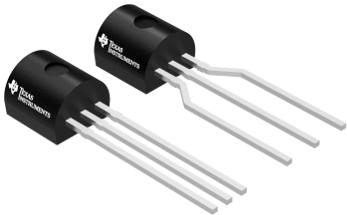

Linear Regulators UA78L05AILP
Texas Instruments
UA78L05AILP
--
Power Management
Linear Regulators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| Type | LDO |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| Polarity | Positive |
| ECCN (US) | EAR99 |
| Packaging | Bulk |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Fixed |
| PCB changed | 3 |
| Part Status | Active |
| Accuracy (%) | ±3.75 |
| Package Width | 4.19(Max) |
| Package Height | 5.34(Max) |
| Package Length | 5.21(Max) |
| Line Regulation | 150mV |
| Load Regulation | 60mV |
| Junction to Case | 74.4°C/W |
| Special Features | Current Limit|Short Circuit Protection|Thermal Protection |
| Supplier Package | TO-92 |
| Number of Outputs | 1 |
| Output Voltage (V) | 5 |
| Junction to Ambient | 143.6°C/W |
| Standard Package Name | TO-92 |
| Maximum Input Voltage (V) | 20 |
| Minimum Input Voltage (V) | 7 |
| Maximum Output Current (A) | 0.1 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Description |
