Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| Tab | Tab |
| PPAP | No |
| SVHC | Yes |
| Type | LDO |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| Polarity | Positive |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 6 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Adjustable |
| PCB changed | 5 |
| Part Status | Obsolete |
| Accuracy (%) | ±3 |
| Package Width | 9.35(Max) |
| Package Height | 4.57(Max) |
| Package Length | 10.24(Max) |
| Line Regulation | 0.03%(Typ) |
| Load Regulation | 0.03%(Typ) |
| Junction to Case | 3°C/W |
| Special Features | Current Limit|Short Circuit Protection|Thermal Shutdown Protection |

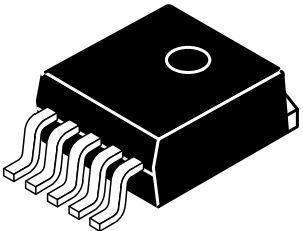

| Supplier Package | D2PAK |
| Number of Outputs | 1 |
| Output Voltage (V) | 0.9 to 7.7 |
| Junction to Ambient | 83°C/W |
| Reference Voltage (V) | 0.9 |
| Standard Package Name | TO-263 |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Voltage (V) | 9 |
| Minimum Input Voltage (V) | 2.5 |
| Maximum Output Current (A) | 1.5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Dropout Voltage @ Current (V) | 1.3@1.5A |
| Description |
