Level Translators SN74LV4T125RGYR
Texas Instruments

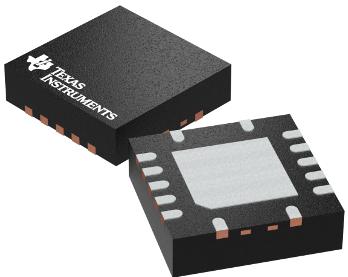

SN74LV4T125RGYR
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | 3-State |
| PCB changed | 14 |
| Part Status | Active |
| Channel Type | Unidirectional |
| Logic Family | LV |
| Package Width | 3.65(Max) |
| Logic Function | Voltage Level Shifter |
| Package Height | 0.95(Max) |
| Package Length | 3.65(Max) |
| Supplier Package | VQFN EP |
| Number of Channels | 4 |
| Process Technology | CMOS |
| Standard Package Name | QFN |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 1.6 |
| Typical Operating Supply Voltage (V) | 1.8|2.5|3.3|5 |
| Maximum Low Level Output Current (mA) | 16 |
| Maximum High Level Output Current (mA) | -16 |
| Description |
