Level Translators MC10H641FN
onsemi

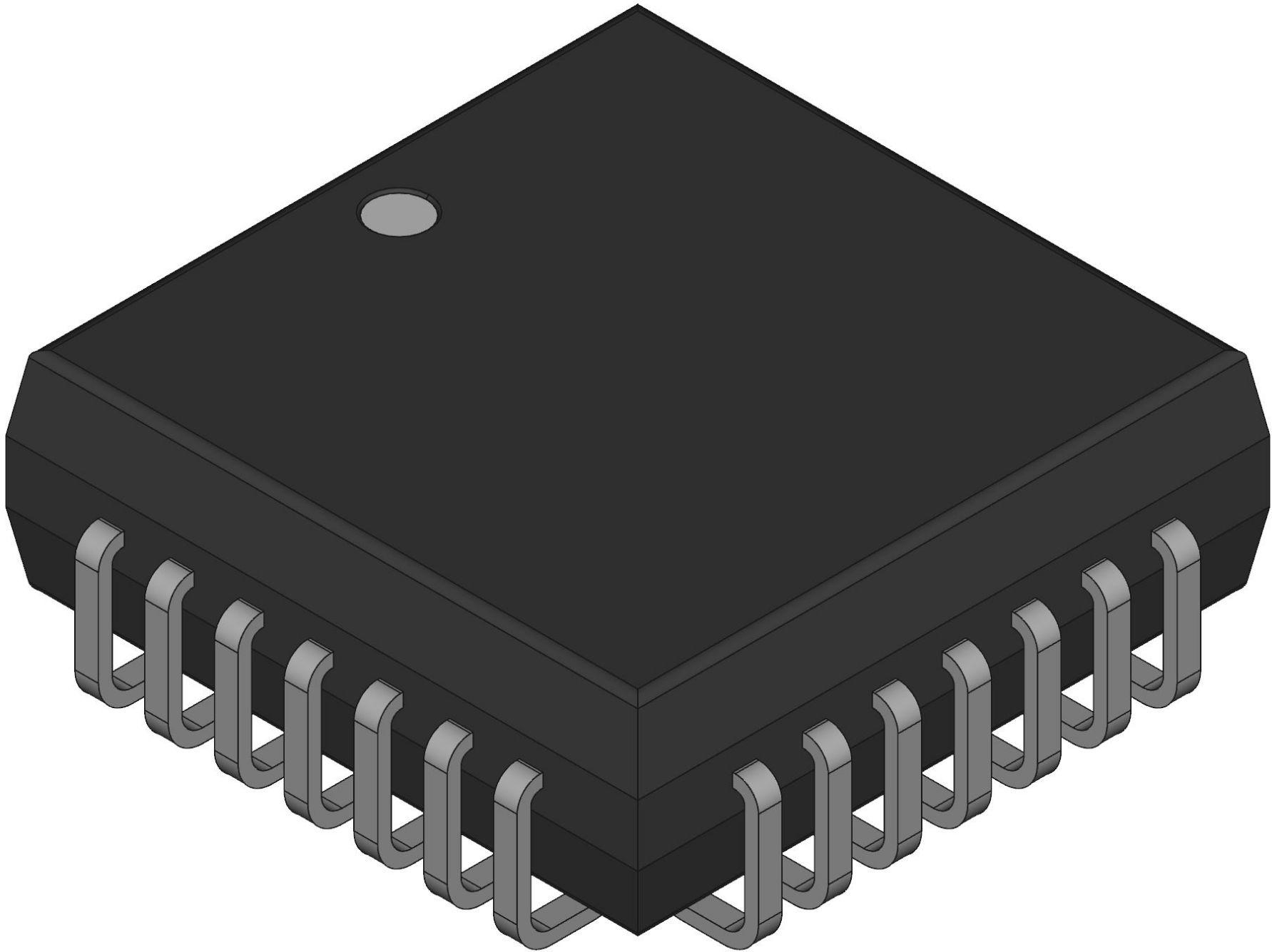

MC10H641FN
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Rail |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | J-Lead |
| PCB changed | 28 |
| Part Status | Obsolete |
| Translation | PECL to TTL |
| Channel Type | Unidirectional |
| Logic Family | ECL |
| Package Width | 11.58(Max) |
| Logic Function | Latched Translator |
| Package Height | 3.69(Min) |
| Package Length | 11.58(Max) |
| Supplier Package | PLCC |
| Number of Channels | 1 |
| Process Technology | ECL |
| Standard Package Name | LCC |
| SVHC Exceeds Threshold | Yes |
| Maximum Frequency (MHz) | 65(Min) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 7 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 24 |
| Maximum High Level Output Current (mA) | -15 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 6.27@5V |
| Description |
