Level Translators MC100EPT22DT
onsemi

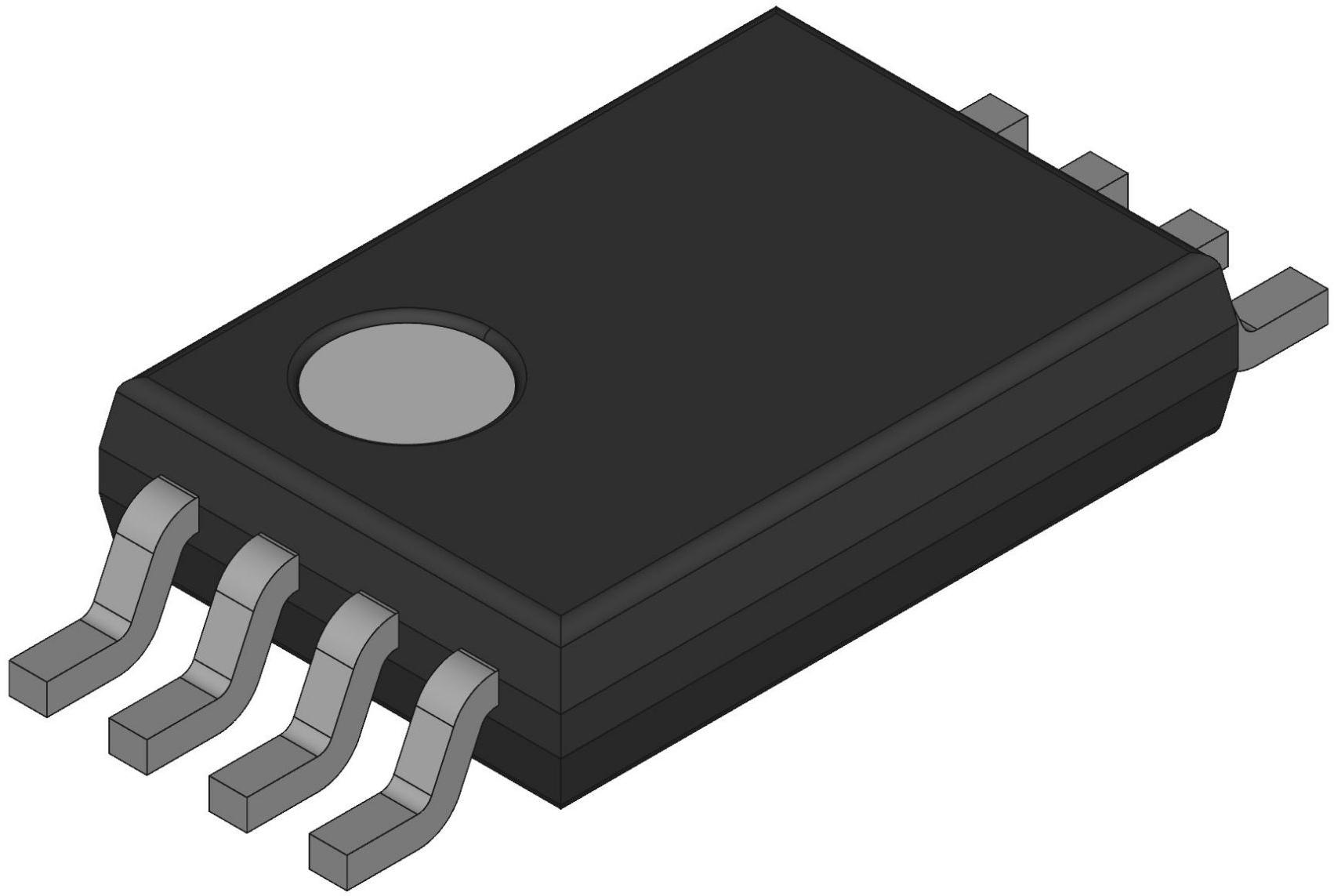

MC100EPT22DT
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 8 |
| Part Status | Obsolete |
| Translation | LVCMOS/LVTTL to LVPECL |
| Channel Type | Unidirectional |
| Logic Family | ECL |
| Package Width | 3.1(Max) |
| Logic Function | Translator |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Supplier Package | TSSOP |
| Number of Channels | 2 |
| Process Technology | ECL |
| Standard Package Name | SOP |
| SVHC Exceeds Threshold | Yes |
| Maximum Frequency (MHz) | 1100(Typ) |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 0.7 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Low Level Output Current (mA) | 50 |
| Maximum High Level Output Current (mA) | -50 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 0.675@3V to 3.6V |
| Description |
